Type: Crude oil extraction line from Copra

Processing Material: Copra/Coconut

Production Capacity: 10-2000T/D

 Copra/Coconut Oil Pressing Machine:

The dry processing method refers to making oil from desiccated coconut which is commonly called copra. The coconut is firstly be cut to pieces and died to remove the moisture. To remove the body from inside the shell and then divide the copra into 'A inch pieces but do not remove the testa on the coconut meat. Let the copra thoroughly dry so that all moisture from the meat is gone.

Copra moisture: It should be controlled in 7%-10%, otherwise it is not conducive to oil extraction.

1. Crushing: Copra is big, strong and tough, unlike soybeans which break easily when moisture is low. So hammer crushing machine is needed in copra oil processing plant, and twice crushing is suggested to improve the production output.

2. Copra Flaking: The purpose of flaking is to reduce residual oil rate.

3. Copra Oil Pressing: It generally still contains small amount of big particles after crushing. So pre-pressing is suggested to reduce the oil content below 40%, and the copra can also be softened. This way can achieve the minimum power consumption, the highest oil yield, the smoothest continuous working mode, and the best oil cake quality with the lowest residual oil.

4. Oil Filter Machine: Oil filter machine is used for purifying the crude coconut oil. It utilizes a fine-mesh filtering cloth. The oil under the pressure goes through the filtrating cloth, gets out from the faucet beneath the filtrating cloth.

Our coconut oil pressing machine is a screw type mechanical expeller press featured of easy operation and high efficient. You may use the machine to process both copra and virgin coconut.

Coconut Oil Press Features:

1. Automatic coconut oil press also can press many kinds of oil plant seeds, such as sunflower, peanut, soybean, sesame, coconut, rapeseed, flax seed, etc.

2. High oil yield and high purity edible oil.

3. The wear parts are made of the carbon steel which is under the process of heat pretreatment, making them very durable.

4. Automatic screw coconut oil press is safety and convenience. The whole process is controlled by electric cabinet, so that it is more safety and easy to operate.

5. Automatic coconut oil press can save 60% labor for equal output, and 1-2 people can operate independently.

 Copra/Coconut Oil Solvent Extraction Machine:

Characteristic of Copra Oil Solvent Extraction Process:

1) Extraction process act as mass production processing adopting mature rotocel extractor, DT desolventizer toaster;

2) Meal-fine stripping system can avoid its coming into the 1st stage evaporator and 2nd stage steam, so ensures the efficiency of thermo-conductivity and evaporating;

3) Reasonable layout, convenient for operating and management.

Technical Characteristics of Copra Oil Extraction Equipment:

This design considers the current advanced technology, client's long-term operating practice in the future. The basic principles of design are safety, reliability, energy saving, economy, low failure rate, easy to maintain, long life. The detail is listed as following:

Rotocel Extractor: Stainless steel fixed plates are used, thus extractor has large surplus capacity, it is helpful to expand capacity in the future.

DT Desolventizer Toaster:

a. With fit steam praying method, lowering the temperature of exit vapor, largely saving steam;

b. Under the stage of air-tight, distributes direct steam with uniformity, it can make the solvent residue of final meal lower than traditional equipment;

c. In each part of the equipment, meal has the same staying time, so the quality is unified;

d. Vapor temperature can be automatic controlled by adjusting the flow rate of direct steam.

Stripper: De-solvent capacity is high, and can avoid the case of solvent residue fluctuating due to the instability of vapor; thus, volatile in crude oil is largely reduced.

 Coconut/Copra Oil Refining Machine:

Coconut Oil is light yellow color oil obtained by screw pressing/solvent extraction of dried coconuts. Coconut oil refinery is one of the most important processes in coconut oil processing. Commonly coconut oil is refined, bleached and deodorised coconut oil or RBD coconut oil, which is produced from dry coconut meat (copra).

Coconut oil processing plant mainly includes crushing section, steaming and stir frying section, extracting section, degumming section, deacidification section, decoloration section and deodorization section.

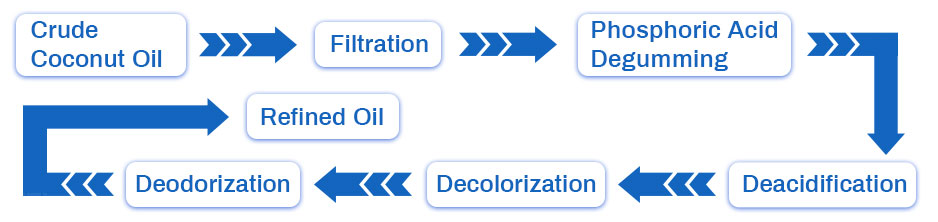

Copra/Coconut Oil Refining Process:

Crude Copra/Coconut Oil → Filtration → Phosphoric Acid Degumming → Deacidification → Decolorization → Deodorization → Refined Oil

Huatai coconut oil mill plant has the following advantages:

1. With low energy consumption and long service life to maximize the profit of customers;

2. To minimize the loss of oil, improve oil yield, improve production quality and improve the quality of oil and meal.

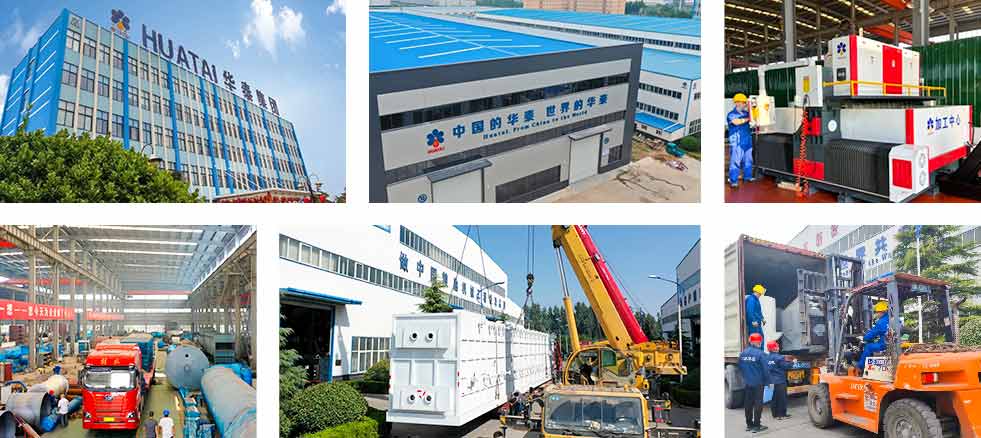

 Strength of Huatai Oil Machinery

Henan Huatai Cereals and Oils Machinery Co., Ltd. has been committed to the production and research and development of grain and oil machinery for 37+ years. It has mature production and manufacturing processes and skilled technical workers for edible oil processing machine, and is committed to providing customers with high-quality, cost-effective cooking oil equipment, mainly includes cooking oil press machine, edible oil extraction machine, vegetable oil refining equipment, complete edible oil production lines, etc. The equipment models are complete and the quality is good. Also, we provide customized services for edible oil mills to helps customers solve different product needs. Our edible oil processing machine are sold to more than a dozen countries and are well received by domestic and foreign customers.

All in all, to consult and purchase copra/coconut oil processing machine, you can go to Huatai Oil Machinery. Please leave your inquiry information, such as: your raw material, machine capacity (TPD, how many tons to process per day), processing technology (Pressing, extraction, refining) or full set of production lines, etc. We will contact you ASAP and send you the complete fetures and specifications of the equipment. Welcome to visit our factory and for latest quotation.
