If you are planning a soybean oil processing project-or looking to upgrade an existing oil production line—the first question you must clarify is: exactly what machinery is required to extract soybean oil?
Processing soybean oil is not as simple as merely feeding soybeans into a single oil press. A complete soybean oil production line typically comprises three core stages: pretreatment, oil extraction, and oil refining, involving dozens of different types of machinery and equipment. This article will systematically outline the various machines and equipment required for soybean oil extraction, with a particular focus on the comprehensive solutions offered by a leading industry supplier: Henan Huatai Cereals and Oils Machinery Co., Ltd.
1. Two Main Processes for Soybean Oil Production
Before delving into specific machinery, we must first establish a fundamental premise: industrially, there are two primary processes for producing soybean oil—the pressing method and the solvent extraction method.
Pressing Method: This method applies pressure to raw soybeans using a screw oil press to physically squeeze out the oil. It is a purely physical processing technique with an oil yield of approximately 65%–70%, making it suitable for small to medium-sized soybean oil mills.
Solvent Extraction Method: This method utilizes organic solvents to dissolve and extract the oil from the soybeans; the crude oil is then obtained by separating the solvent through evaporation. This process boasts an oil yield of over 99%, with residual oil in the meal controllable to less than 1%, making it ideal for large-scale industrial production.
Both processes have their respective merits; the choice between them depends on your production scale, budget, and product positioning. Huatai Oil Machinery can provide complete equipment solutions-ranging from pressing systems to solvent extraction systems-tailored to meet specific clients' requirements.
2. What Machinery Is Required for the Soybean Pretreatment Stage?
Regardless of whether the pressing or solvent extraction method is adopted, soybeans must undergo a pretreatment process before entering the actual oil extraction stage. The primary objectives of pretreatment are to remove impurities, adjust moisture levels, and disrupt the cellular structure of the soybeans, thereby preparing them for subsequent oil extraction.
Core Equipment of Preparation:
| Equipment Name | Function | Huatai Advantage |
| Cleaning Sieve / Destoner / Magnetic Separator | Removes impurities, stones, and ferrous debris | Integrated with an air suction duct system for effective dust control |
| Crusher | Crushes soybeans into uniform particles | Patented crushing technology ensures uniformity |
| Softening Pot | Regulates moisture content and enhances the plasticity of oil-bearing materials | Features our independently developed vertical soybean dehuller |
| Flaking Mill | Presses soybeans into thin flakes, disrupting cellular structures | Ensures uniform flaking results, thereby increasing oil yield |
| Expander | Subjects material to instantaneous high-temperature and high-pressure expansion, altering its physical structure | Integrates mixing, crushing, heating, and expansion functions into a single unit |
3. What Machinery Is Used in the Soybean Oil Extraction Stage?
Once the pretreatment is complete, the processed material is ready to proceed to the oil extraction stage. At this juncture, the specific equipment configuration varies significantly depending on the chosen processing method.
1) Core Equipment for the Pressing Method: The Screw Oil Press
The central piece of equipment in the pressing method is the screw oil press. Huatai's screw-type soybean oil presses feature an advanced screw design with a daily processing capacity ranging from 10 to 500 tons. Utilizing a purely physical extrusion process, these machines effectively preserve the natural flavor and nutritional content of the soybean oil.
For small to medium-scale soybean oil processing plants, the screw press offers exceptional cost-effectiveness; it requires low capital investment, is simple to operate, and yields a moderate oil extraction rate-making it an ideal choice for newcomers to the industry.
2) Core Equipment for the Extraction Process: Extractors and Auxiliary Systems
Solvent extraction is the dominant process in the industrial production of soybean oil, involving equipment that is both more complex and sophisticated.

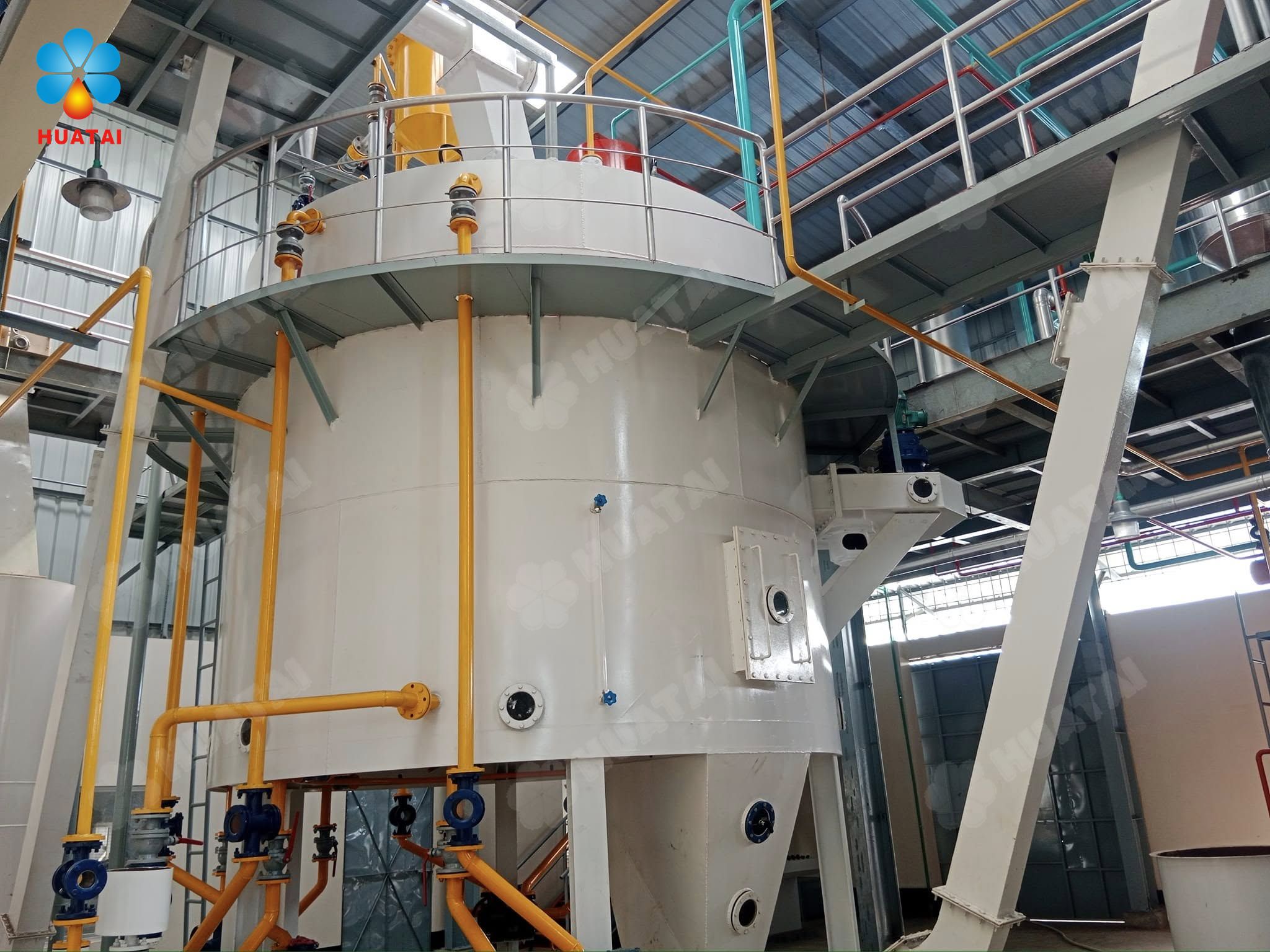

The extractor serves as the core component of the solvent extraction process. Huatai offers a variety of extractor types to choose from:
Rotocel Extractor: A continuous, modular extraction unit suitable for small to medium-sized oil mills; it is the most widely utilized piece of equipment for edible oil extraction.
Loop Extractor: Designed for large-scale soybean oil mills, this system utilizes a chain conveyor to transport the material through the extraction cycle.
Towline Extractor: A continuous, immersion-style extractor suitable for the direct extraction of materials such as soybeans and rice bran.
3) Auxiliary systems are equally indispensable:
Evaporation System: Employs a combination of steam and mechanical vacuum technologies to reduce production costs.
DTDC Desolventizer-Toaster: Features an added VRS (Vapor Reclaiming Section) layer to minimize residual solvent levels in the meal.
Condensation System: Effectively recovers solvents, thereby lowering production costs.
Tail Gas Absorption System: Reduces solvent emissions to ensure compliance with environmental protection regulations.
Huatai's complete soybean oil extraction equipment lines offer a single-line daily processing capacity ranging from 10 to 2,000 tons, capable of meeting the diverse needs of operations ranging from small and medium-sized oil mills to large-scale oil and fat processing enterprises.
4. What Equipment is Required for the Soybean Oil Refining Process?
The crude oil obtained through pressing and extraction processes still contains various impurities—such as phospholipids, free fatty acids, moisture, pigments, and off-flavors—the presence of which would compromise both the taste and quality if consumed directly. Therefore, crude oil must undergo a refining process to be transformed into edible oil that meets national quality standards.
Process Flow and Corresponding Equipment of Oil Refining：
| Section | Process | Corresponding Equipment | Huatai Technical Highlights |
| Degumming | Removal of phospholipids and other gums | Hydration degumming equipment | Enzymatic degumming process available |
| Deacidification | Removal of free fatty acids | Alkali refining equipment / Physical refining tower | Low-temperature deacidification process; saves 30% on energy |
| Decolorization | Removal of pigments | Adsorption decolorization equipment | Equipped with odor capture devices to meet environmental protection standards |
| Deodorization | Removal of off-flavors | Vacuum deodorization tower | Steam jet deodorization technology |
Grade 1 soybean oil, for instance, requires meticulous processing through multiple stages, including hydration degumming, alkali refining (deacidification), vacuum drying, adsorption decolorization, and vacuum deodorization.
Huatai's soybean oil refining equipment offers flexible configurations with processing capacities ranging from 1 to 1,000 tons per day, achieving a 15–20% reduction in energy consumption compared to traditional refining methods. To date, Huatai's refining equipment has been successfully deployed in over 70 countries and regions worldwide.
5. Why Choose Henan Huatai Cereals and Oils Machinery Co., Ltd.?
Established in 1988, Henan Huatai Cereals and Oils Machinery Co., Ltd. is a large-scale manufacturing enterprise specializing in grain and oil processing machinery, integrating R&D, design, manufacturing, and installation services.
1) Robust Technical Strength: Holding numerous national patents.
2) Extensive Capacity Coverage: Our pretreatment, extraction, and refining equipment spans a full range of processing capacities—from 10 to 5,000 tons per day—catering to the diverse needs of clients ranging from small-scale oil workshops to large-scale oil and fat enterprises.
3) Global Service Network: Our products are exported to over 70 countries worldwide, and we have successfully established more than 1,000 intelligent oil processing plants.
4) Benchmark Project Examples: Huatai has successfully constructed soybean oil production lines for numerous large-scale domestic and international oil and fat companies, earning widespread market acclaim.
5) One-Stop Turnkey Services: We provide comprehensive support throughout the entire process—from planning and consultation to equipment manufacturing, installation, and commissioning.
Summary
The machinery and equipment system for extracting soybean oil is both vast and intricate. From pretreatment equipment—such as cleaning screens and crushers-to core extraction machinery (including screw oil presses or extractors), and finally to refining equipment for degumming, deacidification, decolorization, and deodorization, every single stage directly impacts the final oil quality and economic returns.
While selecting high-quality machinery is undoubtedly important, choosing a trustworthy partner is even more critical. With over 38 years of accumulated technical expertise and project experience spanning over 70 countries, Henan Huatai Cereals and Oils Machinery Co., Ltd. is uniquely positioned to provide you with a truly customized, one-stop solution for your soybean oil processing needs. If you are currently planning a soybean oil processing project, welcome to contact us to receive a tailored equipment proposal.
